Fully automatic tube bending machines CNC

for maximum dynamics and precision

CNC-controlled tube bending machines bend tubes with the greatest productivity, dynamics and precision. Tube feeding and tube turning are executed with servo-electric control. Bending drive and clamping functions operate hydraulically.

The hybrid concept unites the advantages of electrical and hydraulic drive technology.

The powerful CNC-S control with 15″ touch screen is integrated into a mobile operating console. Bending programs can be created, processed and administrated directly on the machine. Hardware and software are state-of-the-art and leave no wish unanswered.

Fully automatic CNC-controlled tube bending machines are the first choice when the maximum in precision and productivity are required.

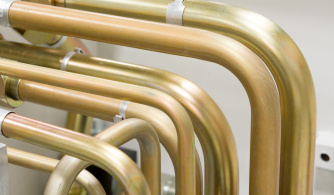

APPLICATIONS AREAS: Metal construction, metalwork and general machine construction, pipework construction, hydraulics, plant construction



CHARACTERISTICS

Machine control CNC control in a mobile operator terminal
15” touch screen
Program creation Thoman 3D program wizard
Bending axis hydraulically controlled
Tube feeding hydraulically controlled
Tube turning hydraulically controlled
Tool reverse twisting hydraulically controlled
Tube clamping on the bending tool hydraulic
Application of the sliding jaw hydraulic
Mandrel extraction hydraulic
Premature mandrel withdrawal programable Standard
Mandrel extraction stroke adjustable Standard
Hydraulic collet chuck Standard
Travelling slide rail Optional
Automatic mandrel lubrication Optional

MACHINES

Machine Profil-Rohr Profil-VKrohr Profil-Rohr
400N / mm2 400N / mm2 VA
FK50-3A-CNC 50,0 x 3,0 35,0 x 2,5 50,0 x 2,0
FK60-3A-CNC 60,3 x 4,0 40,0 x 3,0 60,3 x 2,9

The table only contains a brief extract of the possible profiles and dimensions.

Other profile forms, dimensions and special profiles are possible at any time.

The information applies to steel with a maximum tensile strength of Rm=400N/mm2.

Deviating data applies to profiles produced from aluminium, stainless steel or high-strength materials.



CHARACTERISTICS

  • The maximum in dynamics, precision and productivity due to servo-electrically controlled axes
  • Leading-edge CNC-S control technology with innovative machine software
